DN125×5.0mm×3000mm
| Stationary concrete pump delivery pipe performance comprehensive description | |||||||||
| Name | Specification | Pipe outer diameter | Material | Weight | Geometric dimension tolerance | Pressure | Weld tensile strength | Surface coating | Use |

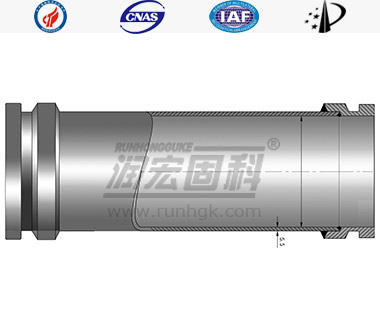

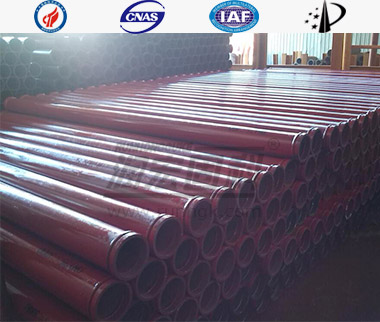

| Stationary concrete pump high-frequency welded pipe SQ345 DN125 HD flange | DN125×5.0mm×3000mm | 139.7mm | Q345 | 50.1kg | 3000±1.5mm | 160bar | ≥410MPa | Ordinary air-dry paint | Truck-mounted concrete pump |
