DN125×3000mm JS Type
| Concrete boom pump wear resistant pipe performance comprehensive description | |||||||||||||||
| Name |
Specifica
tion
|

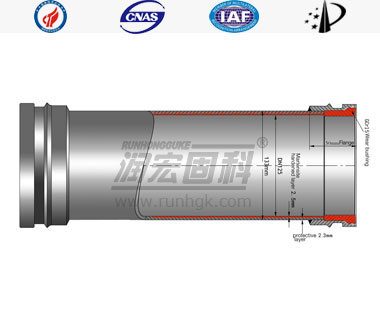

Pipe body description | Flange | Weight |
Manufacture process
|
Geometric dimension tolerance | |||||||||
| Outer diameter | Thickness | Structure | Material | Structure | Height | ||||||||||
| Concrete boom pump wear resistant pipe JS type |
DN125×
3000mm
|
133.2mm | 4.8mm | Single Wall | 50Mn2 |
Compound structure
/"L"type GCr26+
ST52
|
50mm | 48.3kg |
High-
Frequency Quenched
(150KHz)
|
3000±1mm | |||||
Pressure:290bar
Weld tensile strength:＞960bar
Surface coating:Baking paint
Lifetime(Conventional environment):860 Working hours(The average data from the survey of 100 customers in 26 countries)

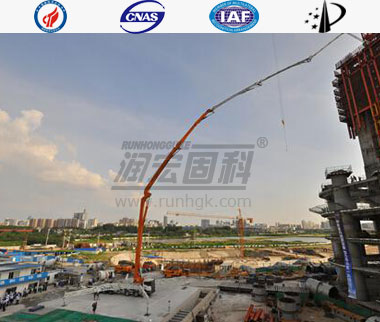

Application:Conceret boom pump
