DN125×3000mm JJ Type
| Concrete boom pump wear resistant pipe performance comprehensive description | |||||||||||||||
| Name | Specifi cation | Pipe body description | Flange | Weight | Manufacture process | Geometric dimension tolerance | Pressure | ||||||||
| Outer diameter |
Thick
ness
|
Struc
ture
|
Material | Structure | Height | ||||||||||
| Concrete boom pump wear resistant pipe JJtype | DN125× 3000mm | 133.2mm | 4.5mm | Single Wall | 45Mn2 |
Compound structure/"一"type
GCr20
+ST52
|
45mm | 43.8kg |
Super sonic frequency quenched
(22KHz)
|
3000±1mm | 260bar | ||||
Weld tensile strength:＞960bar
Surface coating:Baking paint
Lifetime( Conventional environment):750 Working hours(The average data from the survey of 100 customers in 26 countries)

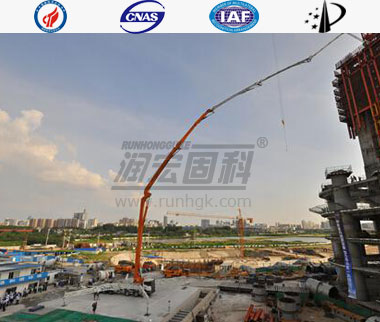

Application:Conceret boom pump
