HGY Hydraulic Placing Boom-17m
| HGY Hydraulic Placing Boom-17m Performance Comprehensive Description | ||
| Item | Data | Structure Feature |

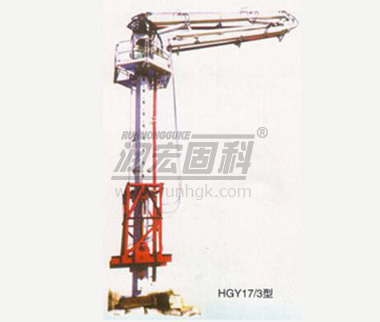

| Max.Placing Radius | 17m | 1. According to different construction needs, there are three methods of installation : fixed independent foundation, climb inside the building, the building level fixed (without the tower). 2. Adopt full hydraulic pressure drive to realize the arm frame's extension and folding, and the whole machine's rotation and the clambing inside the building. 3.With throttle control,wired control and handle reversing, the operation is simple, stable, safe and reliable. 4.The framework of HGY17 /3 type climbing installation is automatic lifting, insteading of tower's rise , reduced the labor intensity and improved the efficiency. 5.Equipped with several safety protection devices, ensure the safety and reliability. |
| Tower Weight | 12.5m | |
| Elevation Angle | -4°~90° | |
| Rotation Angle | 370° | |
| Rotation Speed | 0-0.5r/min | |
| Hydraulic System Working Pressure | 20Mpa | |
| Power | 7.5KW | |
| Pipeline Diameter | DN125 | |
| Total Approx Weight | 9.5t(Without Additional Weight) | |
